Sysmon Commands

sysmon-process-tree command

Output the process tree of a certain process, such as a suspicious or malicious process.

• Input: JSONL
• Profile: Any besides all-field-info and all-field-info-verbose
• Output: Terminal or text file

Required options:

• -p, --processGuid <Process GUID>: sysmon process GUID
• -t, --timeline <JSONL-FILE-OR-DIR>: Hayabusa JSONL timeline file or directory of JSONL files

Options:

• -o, --output <TXT-FILE>: a text file to save the results to.
• -q, --quiet: do not display logo. (default: false)

sysmon-process-tree command examples

Prepare JSONL timeline with Hayabusa:

hayabusa.exe json-timeline -d <EVTX-DIR> -L -o timeline.jsonl -w

Save the results to a text file:

takajo.exe sysmon-process-tree -t ../hayabusa/timeline.jsonl -p "365ABB72-3D4A-5CEB-0000-0010FA93FD00" -o process-tree.txt

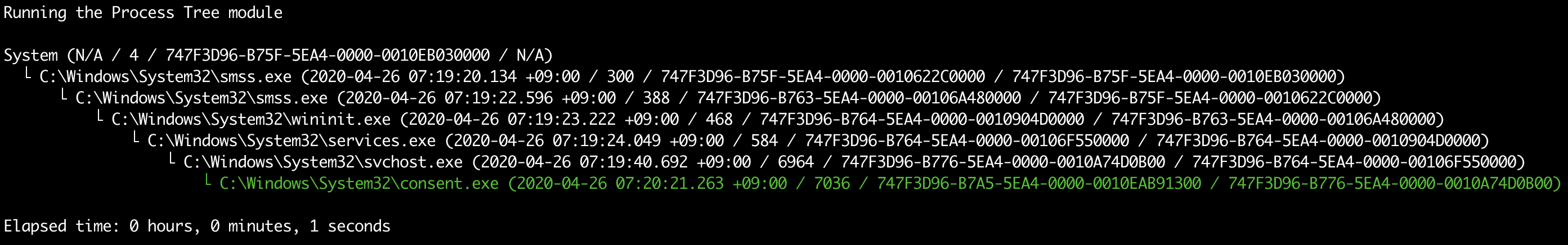

sysmon-process-tree screenshot
